DB7008

Advanced FM and DAB/DAB+ Re-Broadcast Receiver with IP Audio & MP3 Backup Players

High-Accuracy Reception, High-Confidence Rebroadcast
  • High-End Digital DAB/DAB+ Tuner
  • ETSI EN 300 401 Compliant
  • Program Associated Data (PAD) Support
  • Full Component Information including Ensemble, Service, Subchannel, Metadata
  • Automatic Display of Live PAD Information
  • FM Band 87.1 - 108 MHz with Basic Spectrum Analyzer
  • Up to 100 dBµV Direct RF Antenna Input
  • Selectable Wide-Range IF Filter Bandwidth
  • Fully DSP-Based Signal Processing
  • Bright LED Bar Graph Meters for RF, MPX and Audio Levels
  • Selectable De-emphasis
  • Built-in Stereo Decoder
  • RDS/RBDS Decoder with BER Meter
  • Real-Time Audio Streaming for Remote Listening
  • High-Stability RF Front End for Reliable Rebroadcasting
  • Low-Noise, High-Quality Audio Output Paths for Re-Emission
  • Configurable Backup Sources (FM ↔ DAB/DAB+)
  • Automatic Source Switching with Adjustable Thresholds
  • Protected Access to Device Settings
  • Balanced Analog Audio Outputs (XLR) with Adjustable Level
  • Professional AES/EBU Digital Output
  • Headphone Output with Front-Panel Level Control
  • SNTP for Automatic Clock Synchronization
  • LAN Port for Full TCP/IP Remote Control and Monitoring
  • Built-in Web and FTP Servers with no additional software required
  • Easy-to-Use Web Interface with Apple and Android Device Support
  • Adjustable MIN/MAX Alarms for RF, DAB, SNR, CNR, MPX, RDS, L/R Audio Levels.
  • Alarm Dispatch via E-mail, SNMP v2C and Rear-Panel GPO Outputs
  • Detailed Error and Status Logging

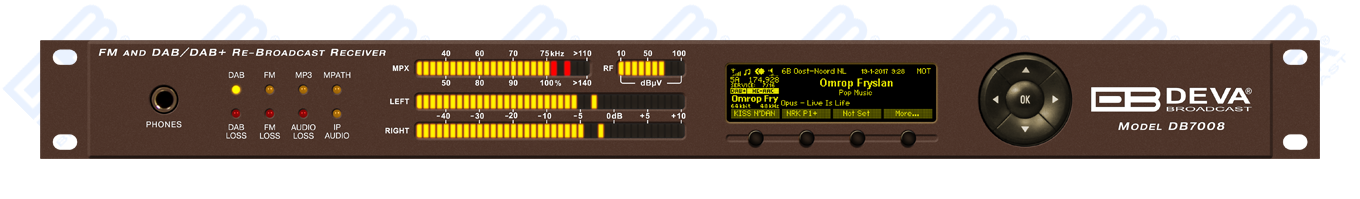

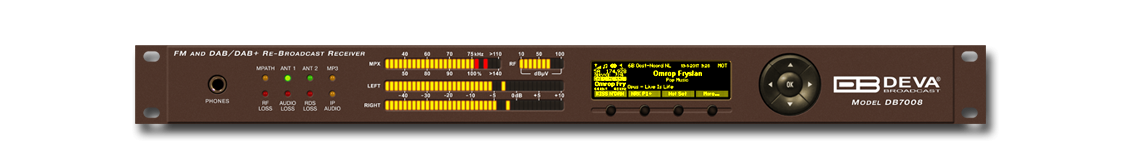

  • Wide-Angle OLED Display for Instant Local Readout
  • Intuitive Front-Panel Navigation with Soft Keys
  • Accurate Front-Panel RF and Audio Metering
  • Firmware Updates for Continuous Feature Improvements
  • Restore Factory Parameters Option

The DB7008 Rebroadcast Receiver is a next-generation solution engineered to deliver high-precision FM and DAB/DAB+ signal reception, monitoring and continuous rebroadcasting within a single professional platform. Built on a powerful DSP architecture and advanced RF front end, it ensures reliable operation even under demanding broadcast conditions.

Thanks to the built-in monitoring system, upon DAB/DAB+ audio loss at the inputs, DB7008 will not only notify the maintenance staff, but will also automatically switch to a back-up FM Station. In case a fail of the FM station is detected, DB7008 will shift to the incorporated IP Stream, MP3/AAC back-up audio source player. It is essential that the back-up sources priority is user-defined. The audio files and playlists can be uploaded in the device’s internal memory directly from your PC, via any FTP client. When the signal at the default input is restored, the DB7008 will automatically switch back to it. Depending on your preferences, several types of alarm notifications are utilized - E-mail, SNMP and SMS (via the optional GSM modem).

Operation is straightforward thanks to the intuitive front-panel interface, sharp OLED display and bright LED level meters. Remote management is fully supported through a responsive web interface compatible with desktop and mobile devices. Integrated SNMP, e-mail and GPO alarms ensure immediate notification of signal issues, making the DB7008 a dependable component in any professional broadcast infrastructure.

Reliable, versatile and engineered for precision, the DB7008 is well suited for broadcasters requiring uninterrupted service, accurate monitoring and metadata consistency across FM and DAB/DAB+ platforms.

DAB/DAB+ Radio Input
RF frequency range168 - 240 MHz
DAB/DAB+Band III Channels 5A - 13F
Sensitivity18 dBµV
Input connectorBNC 50Ω
In compliance withETSI EN 300 401
Ensemble acquisition Time940 ms
L&R Audio1%, +5.0 to -50.0 dB, 0.1 dB resolution
DAB/DAB+ Radio Metering
Quality indicatorsRSSI, SNR, CNR, FIC Quality, FFT Offset
PADDLS, MOT
Metadata DisplayedEnsemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date
FM Radio Input
Tuning Range87.1-108 MHz (CCIR)
Tuning Step10, 20, 50, 100 kHz
Tuner Sensitivity30 dBµV
Antenna PortsBNC Connector, 50Ω
Antenna Ports Isolation> 40 dB
Dynamic range100 dB
FM Demod
IF Filter Bandwindth15 Increments (27kHz - 157kHz, Auto)
Dynamic range90 dB
Stereo Decoder
Frequency Response (L and R)±0.1 dB, 10 Hz to 15 kHz
SNR (Stereo)60 dB, 50 µs de-emphasis
THD0.15% @ 1kHz, 0.4% from 10 Hz to 15 kHz, 50 µs de-emphasis
Separation50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis
Crosstalk52 dB
RDS Decoder
StandardsEuropean RDS CENELEC; United States RBDS NRSC
PI, PS, RTYes
FM Radio Metering
RF Level±1 dB, 0 to 100 dBµV
Audio±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution

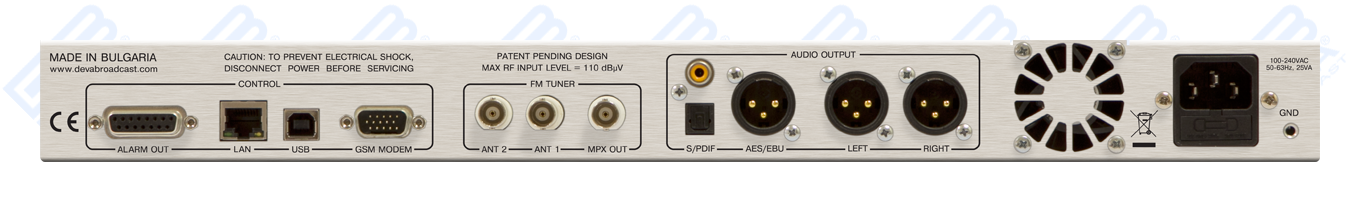

Outputs
Composite+12 dBu @ 75kHz, 75Ω, unbalanced BNC Connector
Audio (L, R)+6 dBu, 600Ω, balanced XLR Connector
AES3 (L, R)5.0 Vp-p, 110Ω, balanced XLR Connector
SPDIF (L, R)3.0 Vp-p, 110Ω, unbalanced BNC Connector
Optical (L, R)Transmitter, TOSLINK
AlarmsProgrammable terminals on rear panel, optoisolated
Headphone6,3mm (1/4") Phone Jack
Communication Interfaces
Ethernet 10/100 Base-TRJ45 Connector
Measurement Storage
StorageBuild-in Memory Card
Data formatText, CSV
Operating conditions
Temperature-15°C to 55°C
Humidity< 95%, non-condensing
Altitude0 to 5000m above sea level
Power
Voltage100-240V / 50-60 Hz
Power Consumption20VA
ConnectorIEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D)485 x 44 x 180 mm
Shipping Weight540 x 115 x 300 mm / 2.700 kg
HS Code 8527213000
